Choosing an XRF system in Mumbai involves more than comparing detector names or headline accuracy. You will be able to match a handheld or benchtop instrument to your jewellery, bullion, scrap, refinery, or laboratory workflow, then verify the demonstration, safety, installation, and service terms before placing an order.
Key takeaways
- Choose benchtop XRF for repeatable counter or buying-office measurements.
- Request a live demonstration using your own jewellery, alloys and sample sizes.
- Compare XRF with fire assay, touchstone and acid testing before buying.
- Ask for calibration records, ownership terms and applicable X-ray safety documents.

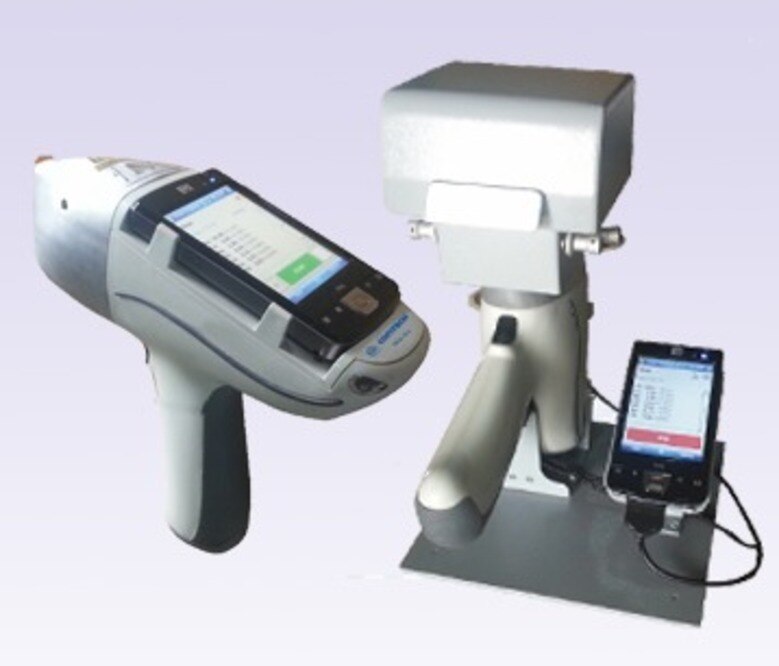

Choose handheld or benchtop equipment for the job
A benchtop XRF gold detector usually suits a jewellery counter or buying office because its enclosure provides controlled geometry, shielding, operator positioning and repeatable placement over the aperture.
A handheld unit is the better choice when you inspect stock away from a counter, visit suppliers, examine large or fixed items, or move through scrap and refinery feedstock.
| Option | Strengths | Suitable applications |
|---|---|---|
| Benchtop | Stable positioning, controlled geometry, shielding, consistent spot placement and higher counter throughput | Jewellery, bullion, coins, laboratory samples and routine buying-office work |
| Handheld | Portable, flexible and usable on large, fixed or awkward items | Scrap, refinery feedstock, field visits, large bullion and on-site stock inspection |
| Either, with a specific model | Requires defined coating capability, standards and software | Plating inspection; ordinary alloy software is not enough |
Test your actual samples before choosing gold purity equipment: thin chains, rings with stones, hollow pieces, soldered repairs and items too small to cover the aperture. Curvature, gaps and mixed construction can make a convenient detector produce an unrepresentative result.
Ask the supplier to measure white gold, plated items, bullion and scrap using repeated readings at several points. Compare spot size, sample throughput and result spread, not a headline accuracy figure.
For coating-thickness measurement, require an explicit coating-analysis specification, suitable standards and ISO 3497 alignment. An alloy-composition mode cannot automatically quantify a gold coating over base metal.
See how an XRF gold purity test produces its result
A reliable XRF result begins with the surface, not the screen. An XRF gold analyzer measures elemental composition near the exposed surface, then converts gold concentration into fineness or karat; it is not a bulk, destructive fire assay.
- Clean off dirt and polishing compound without adding a coating.
- Choose a flat, representative point, avoiding visible joints or repairs.
- Place the item squarely over the aperture, with no gap between sample and instrument.
- Select a defined counting time and record it.
- Repeat the reading at the same point.
- Test multiple points across the item, then compare the spread.
| Condition | Why the result can mislead |
|---|---|
| Curvature, gaps, or a small item | The beam samples an incomplete or poorly positioned area |
| Oxidation, solder, clasps, welds, or repairs | Local chemistry differs from the main alloy |
| Hollow sections | The exposed wall does not represent the whole article |
| Plating or gold-filled construction | A gold-rich surface can produce an overstated reading |
A gold purity detector should show the fineness basis, alloy elements, uncertainty, counting time, spot size, and repeat spread. Approximately 999 or 999.9 means 24-karat, 916 means 22-karat, 750 means 18-karat, and 585 means 14-karat.
Use certified or traceable alloy reference materials covering the grades and alloy families you buy. Escalate plated, non-uniform, or disputed items to an independent bulk assay.
Compare detector types and alternative purity tests before buying
Do not choose an XRF gold analyzer from the detector label alone. Gas proportional, Si-PIN, and SDD detectors differ in resolution, sensitivity, cooling, gas or electronic support, warm-up, and service burden; the source, optics, software, calibration, and sample geometry also determine results.
| Option | Practical difference | Better choice |
|---|---|---|
| Gas proportional | Moderate resolution and useful sensitivity; needs gas management, stabilization, and more maintenance | Fixed installations where detector area and established service support justify the effort |
| Si-PIN | Compact, moderate resolution and sensitivity; short warm-up and low routine maintenance | Routine jewellery testing with controlled geometry and moderate throughput |
| SDD | Highest resolution and sensitivity of these three; electronic cooling, fast stabilization, and greater electronics complexity | Close alloy separation, small spots, or demanding throughput |
| Weighing balance | Establishes mass, not composition | Inventory and transaction control; it cannot prove fineness |
| Density-testing balance | Flags material differences from mass and volume | Screening hollow, filled, or base-metal pieces; it does not identify alloy content |
| Acid test | Gives a quick, surface-oriented indication and can mark the item | Low-cost screening; poor choice for plated, repaired, or disputed pieces |
| Fire assay | Destructive bulk determination | Formal or disputed assay work requiring independent confirmation |
Compare an xrf gold purity detector at the same counting time, spot size, geometry, and calibration range. A specification for xrf gold purity for equipments should state when an independent assay is required, especially for plating, inhomogeneity, or disputes. XRF measures exposed surface composition; it is not bulk fire assay.
Where Mumbai buyers can arrange a demonstration and support
Ask the supplier for its current Mumbai office or showroom address, appointment process, sales channel, delivery coverage, installation and commissioning terms, operator training plan, and named service contact in writing. CONTECH INSTRUMENTS LTD. can be approached as a Mumbai-based source, but confirm these details before arranging a visit.
1. Bring your own difficult samples: white gold, thin chains, stone-set rings, soldered repairs, suspected plating, bullion, and scrap. Add known solid-alloy reference samples. Ask for repeat readings at several points, the counting time, and the result spread—not one favourable reading. 2.
Check the purchase specification for: - Element range and calibration models for yellow, white, and rose gold, silver-rich alloys, palladium, platinum, zinc, nickel, and copper. - Spot size, sample-size limits, display and reporting fields, data export, and camera or sample imaging. - Battery operation, shielding, interlocks, and software controls. 3.
Obtain written terms for delivery, commissioning, warranty, calibration support, software updates, service turnaround, and a loaner or alternate measurement arrangement.
A demonstration is incomplete if it excludes plated or chemically uneven jewellery. A gold purity equipment result can read high when the exposed surface is richer than the underlying metal, so ask how the XRF gold detector handles plating, curved pieces, gaps, and mixed construction. Compare the demonstrated procedure with your buying workflow before signing.
Related products
 | X-RAY FLUORESCENCE SPECTROMETERS GOLD PURITY CHECKING INSTRUMENTS X-Ray Fluorescence Spectrometer Handheld Detector X-Ray Fluorescence Spectrometer Handheld Detector (Si-PIN / SDD) – CGX-104 The X-Ray Fluorescence... View product → |
 | X-RAY FLUORESCENCE SPECTROMETERS X-Ray Fluorescence Spectrometer – Gas Proportional XRF Detector CGX-101 / Silicon-PIN XRF Detector C GOLD PURITY CHECKING INSTRUMENTS X-Ray Fluorescence Spectrometer – Gas Proportional XRF Detector CGX-101 / Silicon-PIN XRF Detector CGX-102 X-Ray... View product → |
Confirm ownership, calibration, and X-ray safety terms
A written quotation is your protection after choosing gold purity equipment. Request detector or X-ray-source warranty, preventive maintenance, calibration verification at the start of each shift and after relocation, certified or traceable reference materials, software support, repair turnaround, and the procedure for rejected or inconclusive samples.
- Ask who supplies yellow-, white-, and rose-gold reference alloys across your calibration range.
- Require software-update terms, training, service contact, and loaner or alternate measurement arrangements.
- Specify when the supplier will refer a sample to an independent assay.
A headline accuracy percentage is incomplete. For xrf gold purity for equipments, compare the conditions behind the number.
| Claim | Require alongside it | Why it matters |
|---|---|---|
| Accuracy | Counting time, geometry, surface condition, calibration range, and spot size | These conditions can change the result |
| Repeatability | Repeated readings at multiple points and the result spread | One favourable reading proves little |
The supplier must state India-specific radiation-safety, installation, shielding, registration, and operating requirements, then name the party responsible for compliance. A desktop enclosure does not automatically remove occupational-safety duties; require written instructions for interlocks, access, training, and records.
Choose the system that produces repeatable results on your own samples and supplies a documented escalation path to independent assay. Use that path when plating, inhomogeneity, or a commercial dispute makes an XRF-only result insufficient.
